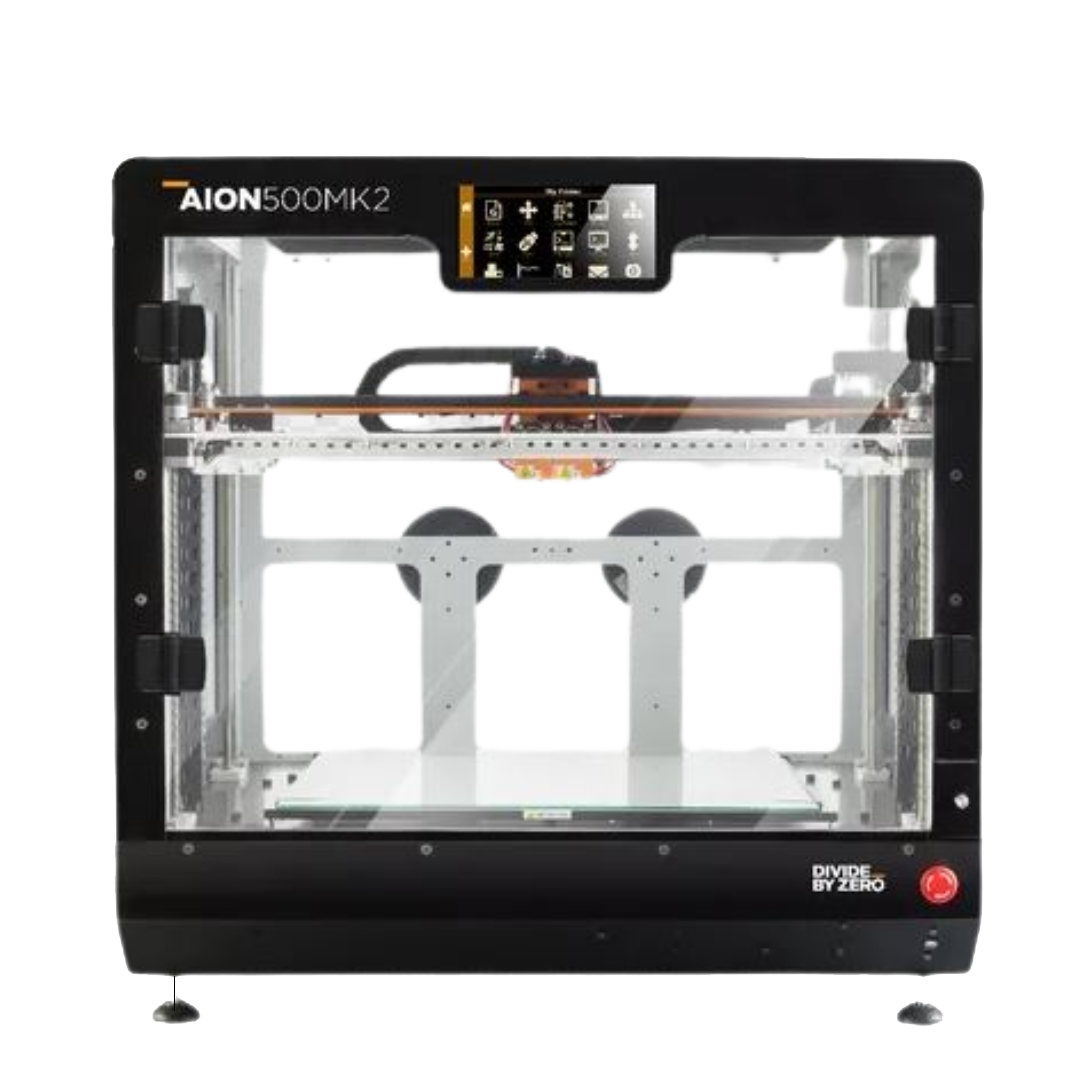

Aion 500 MK2

Redefining The Standards with Auto switchover functionality

Introducing Aion 500 MK2 – India’s FIRST IoT-enabled, industrial-grade professional 3D printer, now with ADVANCED SERVO MOSQUITO EXTRUDER AND ADVANCED FUSION PLASTIC MODELLING (AFPM) TECHNOLOGY
The game changing AION 500 is an IoT enabled, high performance, massive 3D printer which offers a professional-level build volume at an affordable price point.

Get Pricing

Aion 500 MK2 Features

Safer Print

Active carbon filter continuously cleans air inside the machine chamber, providing safer work environment for users.

Higher Productivity

High performance adaptive active liquid cooled extruder head that can print with multiple materials without changing any hardware for long hours at one go with industry’s best throughput

Motion on the Fly

With our years of experience in machine building we have developed unique X-Y motion system in AION 500 that moves Z axis as print is being build on stable build platforms. With this mechanism Aion 500 MK2 can print up to 30% faster without compromising on precision.

Auto-Switchover Functionality

The AION 500MK2 detects clogs and switches to a backup extruder—no more print failures!

AFPM – The New Standard in 3D Printing

Our patented 3D printing firmware–hardware combination ensures adaptive flow & temperature changes in material deposition ensuring better Component strength.

Industry 4.0 Ready

Aion 500 MK2 is ready for industry 4.0. You can control Aion 500 using web browser on your LAN or VPN. The operator keeps an eye on the production process via live imaging, while necessary presence is reduced. This machine is also ready with interface for robot handshake in case of implementation of complete automatic print setup.

Fail-Safe Printing

Aion 500 MK2 comes with patented precision filament flow sensor that tracks consumption of the material flow through extruder & compares that with the consumption indicated in the G code. In case of clogging, the machine resolves the condition pro-actively by cleaning nozzle automatically

Collaborative

Machine can be accessible from web browser for up to 10 user accounts and can be accessed and controlled on a secure connection. Now, not only the operator but also the designers can keep an eye on the progress of their valuable in process 3D print.

Advanced Slicing Software

Automatic pre-processing including slicing, automatic support generation, part packing and nesting computing part build time and material consumption. Sliced file can be directly sent to the cloud for printing.

Industrial grade 3D printer – Aion 500 MK2 Product Output

Compatibility

PLA

Part Strength	Surface Finishing
Warpage Control	Part Flexibility

PETG

Weather Proof	Heat Resistance
Good Chemical	High Impact Strength

PP

Food Grade	Easy to Print
Medical Grade Application	Accuracy

TPU

Part Flexibility	After Print Accuracy
Surface Finishing	Part Shrinkage Control

CARBON FIBER

Part Strength	After Print Accuracy
Warpage Control	Part Shrinkage Control

ABS

Surface Finishing	Support Removal Control
Cost	After Print Accuracy

WOOD FILL

Part Flexibility	After Print Accuracy
Surface Finishing	Part Shrinkage Control

PLA-CF

Part Strength	After Print Accuracy
Warpage Control	Part Shrinkage Control

HIPS

Part Flexibility	After Print Accuracy
Warpage Control	Part Shrinkage Control

ASA

Food Grade	Easy to Print
Medical Grade Application	Accuracy

Aeqon 400 V4 specifications

Physical Dimensions

NOZZLE Diameter

0.4mm – 0.8mm ( optional )

Extruder

Single ( upgradeable to dual )

Noise Level

<55 dB

Printing Speed

200mm/s Variable as per material profile)

Max Extruder Temperature

305°C

Dimensions

L- 730mm X W- 670mm X H- 900mm

Connectivity

USB, Wi-FI, Ethernet

Accuracy

80-250 Micron

Input Power

220V – 4A – 50Hz

Build Material

ABS+, PLA, Metal fill, Carbon fibre, Polycarbonate, Polyurethane, ABS – PC.

Physical Dimensions

Build Size

400mm*300mm*300mm

Total Machine Weight

113 Kg

Compare
