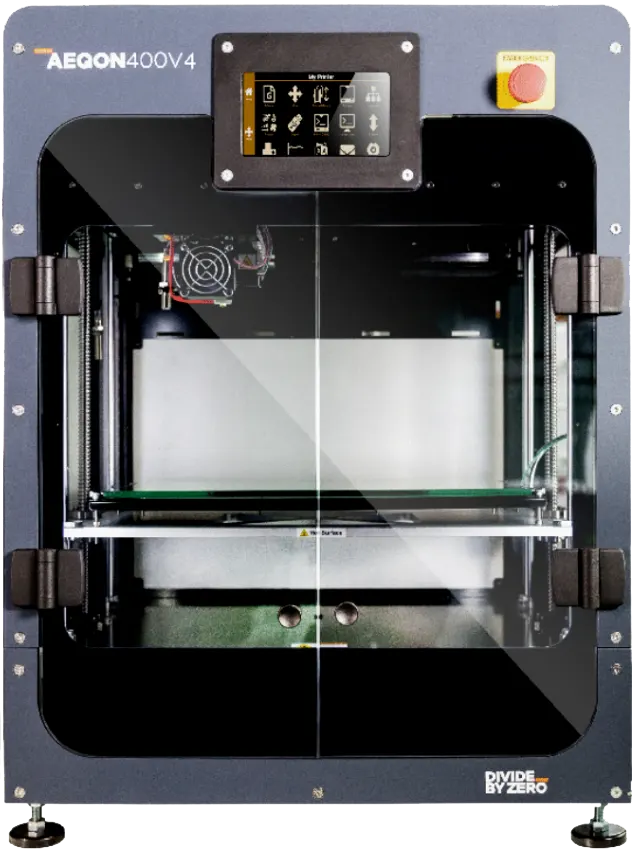

Aeqon 400 V4

India’s First Mid Size Single Extruder 3D Printer with a unique Gantry Design

India’s first mid-size single extruder 3D printer with a unique gantry design for easy 3D printing!
The Aeqon 400 V4 is a low-noise operating, quick-load functionality enabled 3D Printer, with a super-fast slicer software and an industrial-grade build quality which ensures reliable print-cycles. With specially designed high precision ball screws gantry with print speeds of up to 200 mm/sec, this mid-sized 3D printer delivers unmatched precision and repeatability – a prerequisite in rapid prototyping and low-volume batch manufacturing.

Get Pricing

Aeqon 400 V4 Features

Future Proof

Machine that grows with you. We call it “Start Small, Think Big” technology. One machine or multiple machines, all AEQON 400V4 machines can be connected through WI-Fi, Ethernet and USB and can be accessed through web browseron your desktop with access to live camera feed of the print and queue your next prints for your operator who has limited machine access if you want it.

Fast – 2X Deposition Rate

Our advanced extruder design ensures minimum heat creep in the mechanism thanks to our unibody machined extruder that enables you to print with 2x deposition rates. Active filament sensor provides alert upon material flow interruption filament consumption, thus saving valuable time and material, ensuring uniform flow during part build

35% – Small Footprints

Save upto 35% space with unique design that lets you enjoy similar build platform with huge saving on machine foot prints.

High speed Z axis – dual ball screw

Our development team has come up with unique dual pre – loaded ball screw mechanism in Z axis to ensure vibration free high precision, high speed operation of the machine. It achieves 25% to 40% better speed without compromising on quality contrary to traditional cantilever gantry mechanism.

Versatile – multiple material on one machine

Print materials like carbon fibre, ABS, Polycarbonate, Polyurethane on the same machine. Thanks to our advanced extruder mechanism design that can handle various abrasive materials, variable flow and temperature. You can print flexible, high strength, temperature resistant materials in the same machine with almost zero setup time.

Automatic multi point bed leveling correction

This feature improves the quality of printing and component bed adhesion by taking several measurements of the build platform surface and then adjusting all movement to follow the tilt or contours of the bed & along with unique ability to compensate for all the build surface height irregularities.

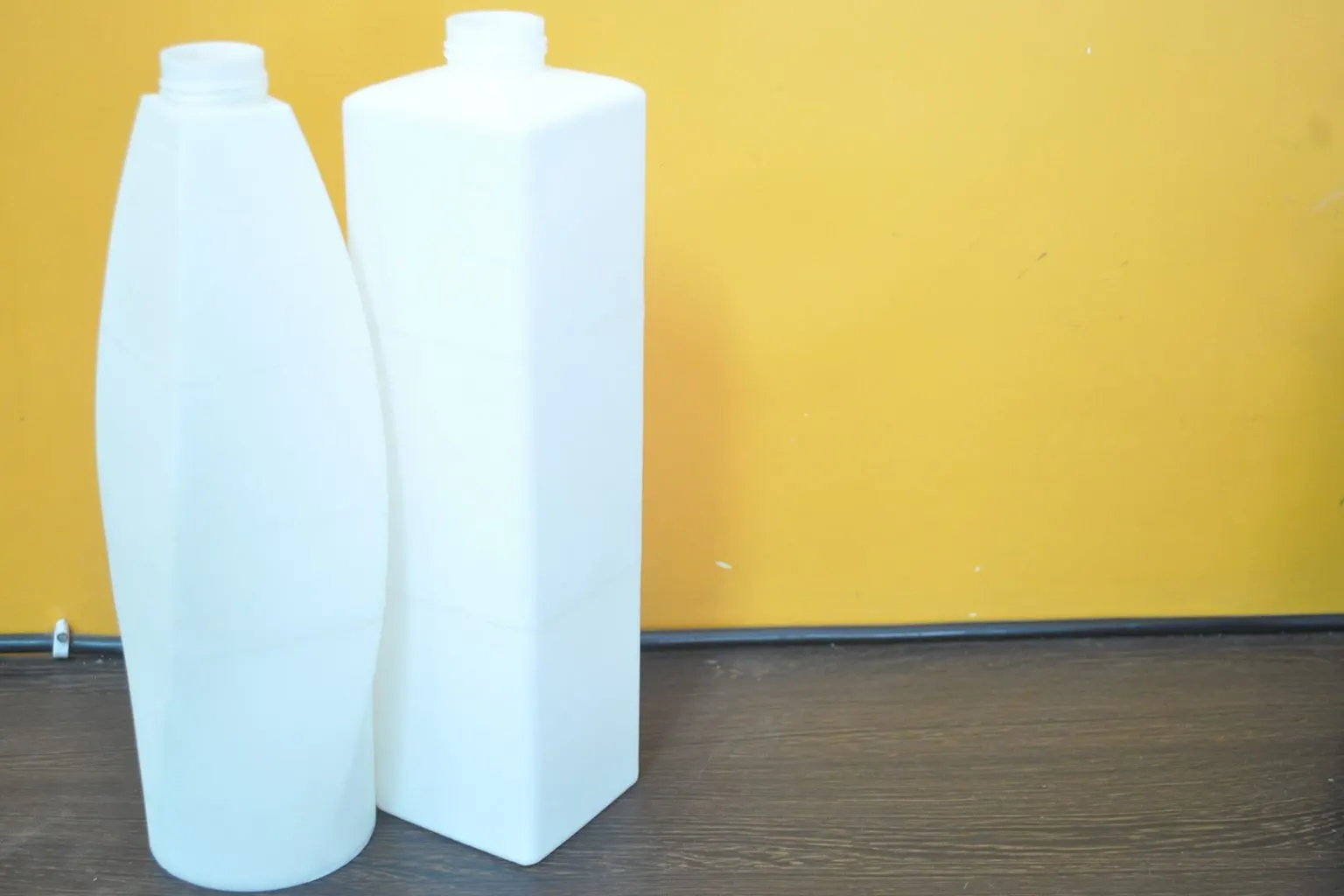

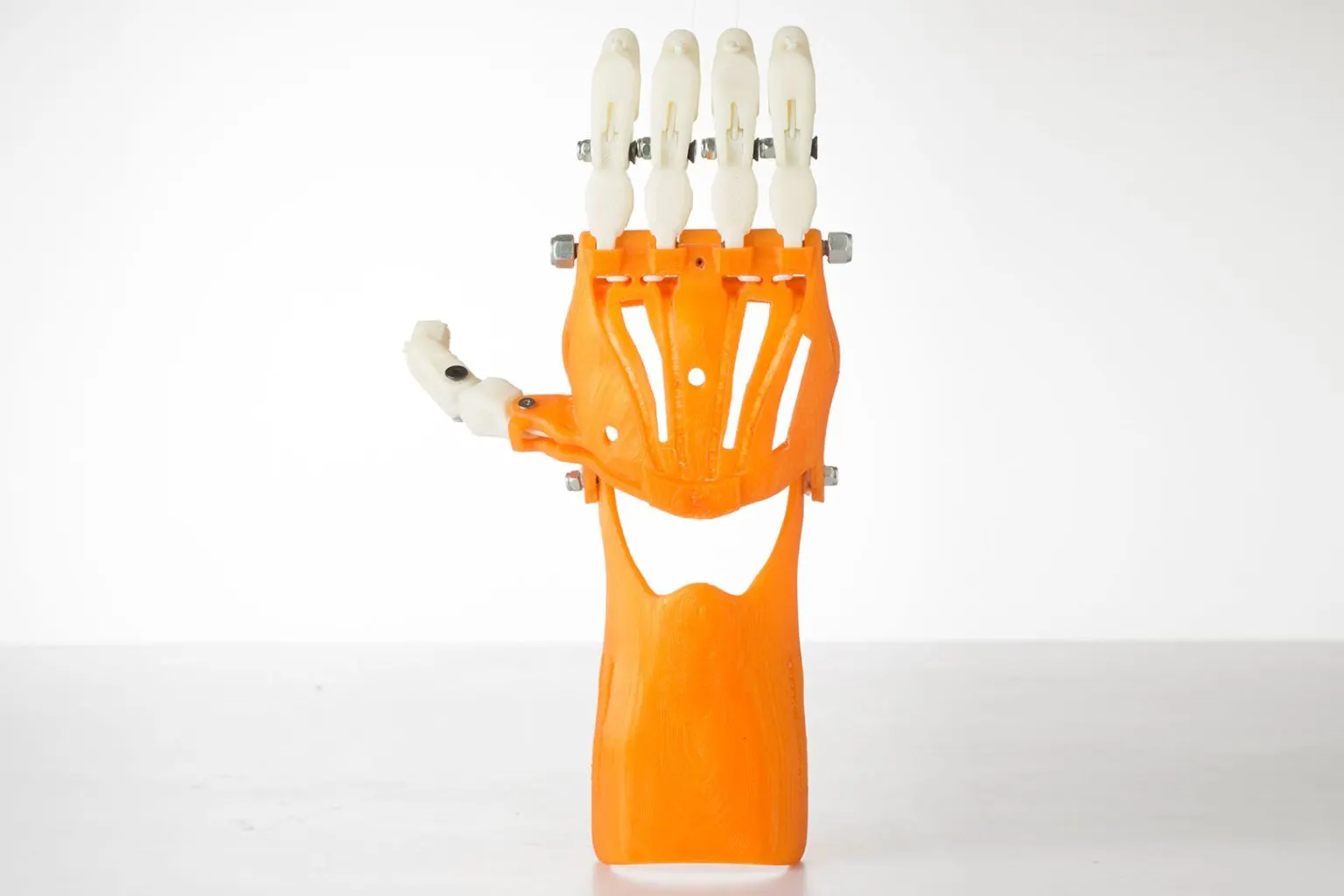

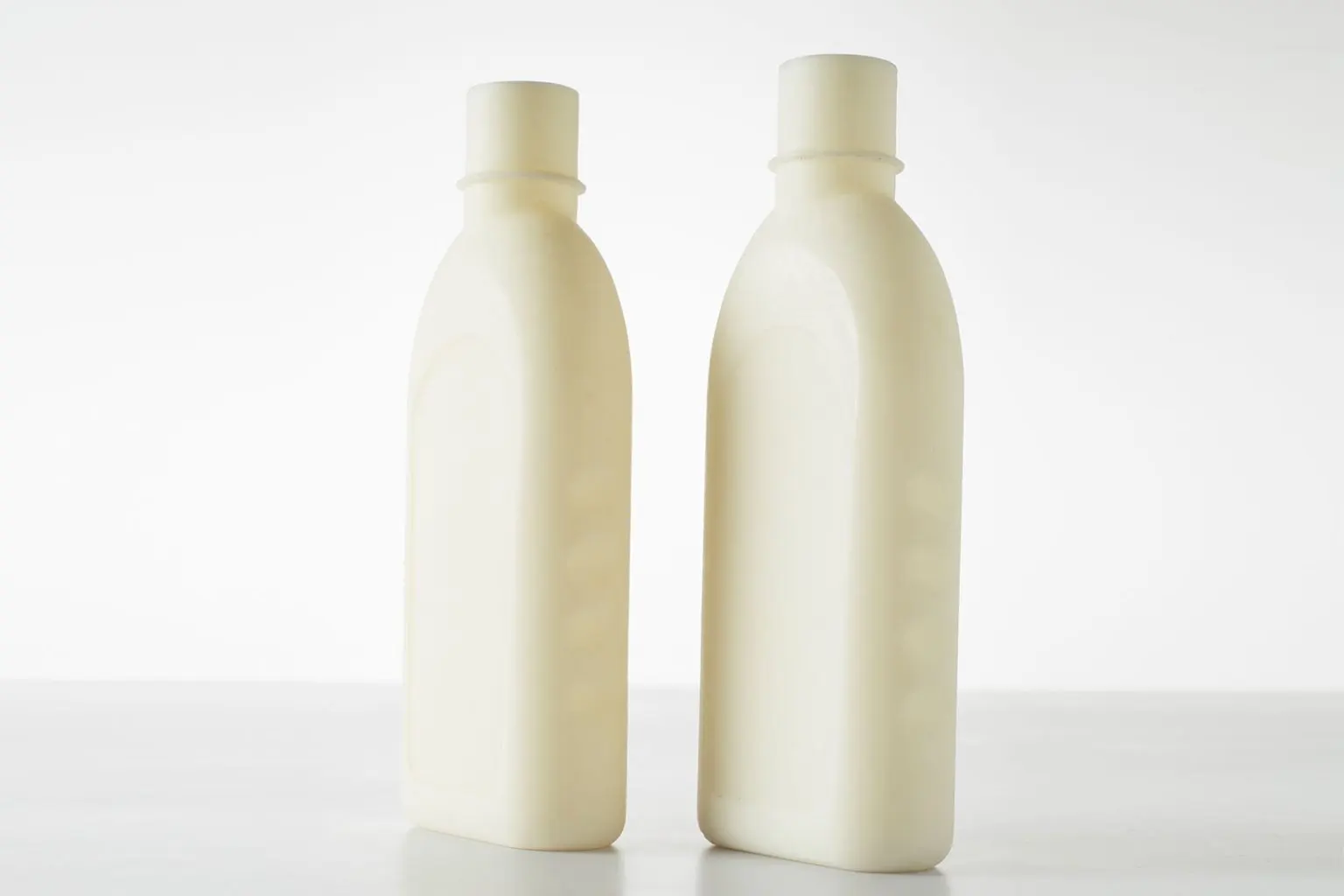

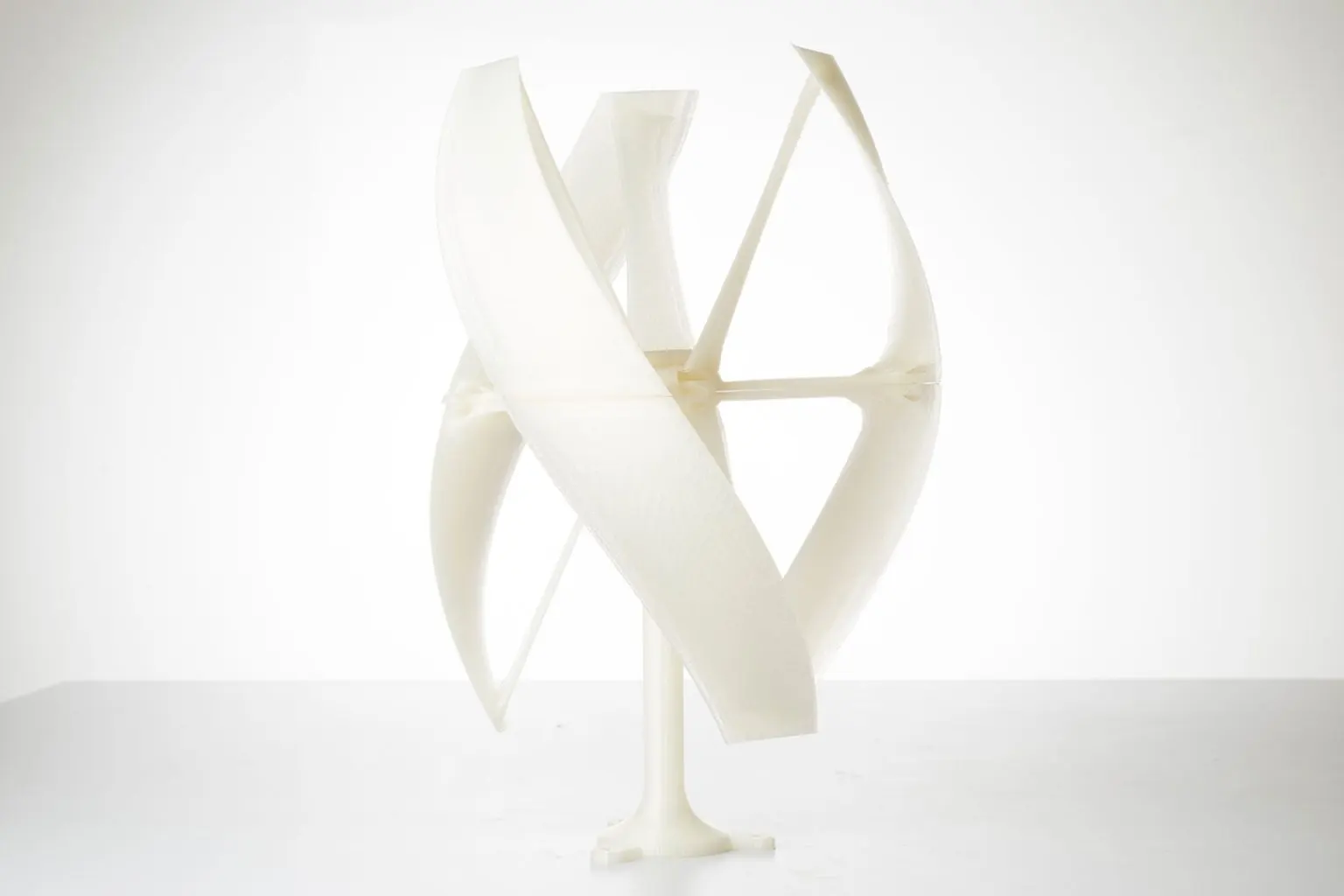

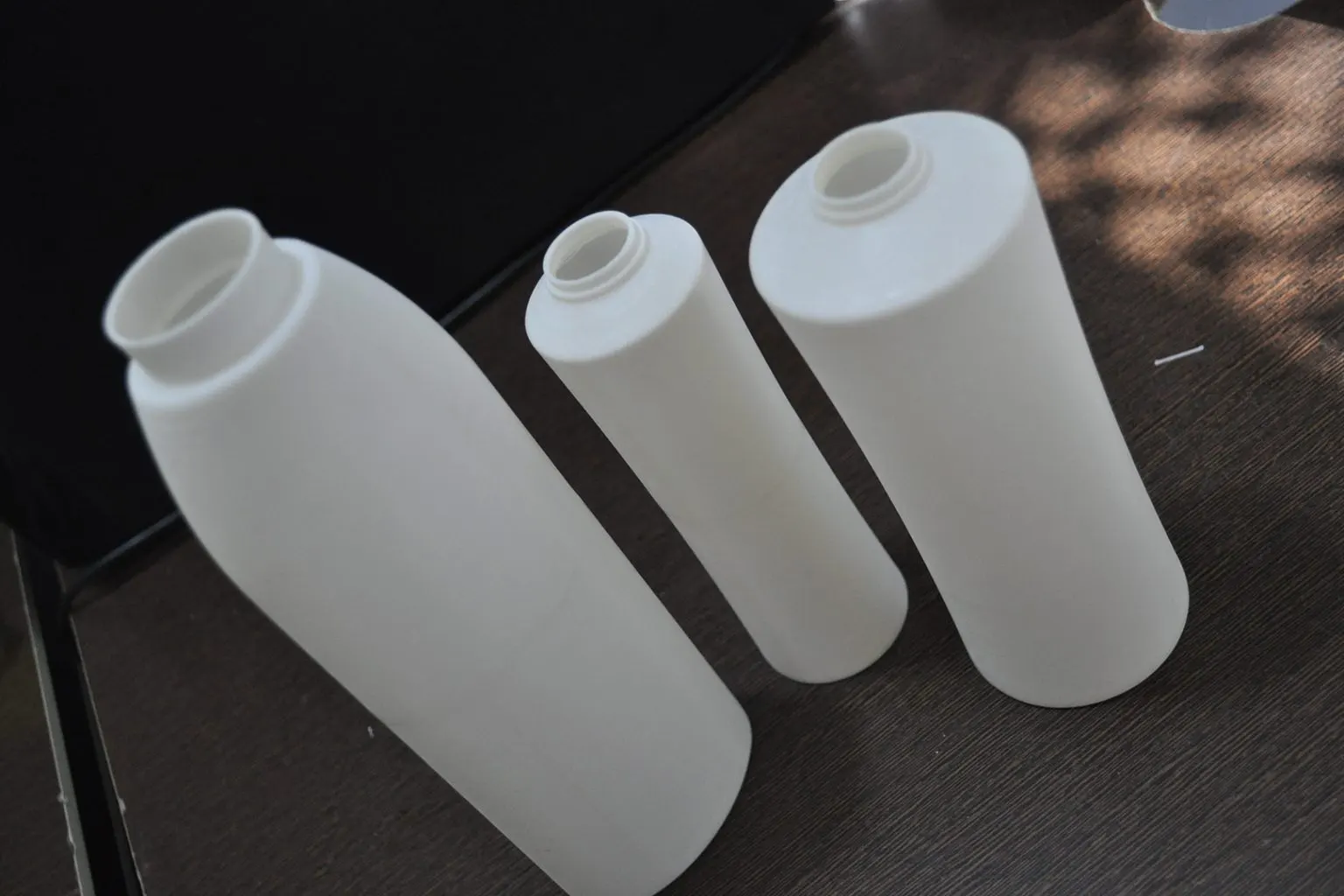

Industrial grade 3D printer – Aeqon 400 V4 Product Output

Compatibility

PLA

Part Strength	Surface Finishing
Warpage Control	Part Flexibility

PETG

Weather Proof	Heat Resistance
Good Chemical	High Impact Strength

PP

Food Grade	Easy to Print
Medical Grade Application	Accuracy

TPU

Part Flexibility	After Print Accuracy
Surface Finishing	Part Shrinkage Control

CARBON FIBER

Part Strength	After Print Accuracy
Warpage Control	Part Shrinkage Control

ABS

Surface Finishing	Support Removal Control
Cost	After Print Accuracy

WOOD FILL

Part Flexibility	After Print Accuracy
Surface Finishing	Part Shrinkage Control

PLA-CF

Part Strength	After Print Accuracy
Warpage Control	Part Shrinkage Control

HIPS

Part Flexibility	After Print Accuracy
Warpage Control	Part Shrinkage Control

ASA

Food Grade	Easy to Print
Medical Grade Application	Accuracy

Aeqon 400 V4 specifications

Physical Dimensions

NOZZLE Diameter

0.4mm – 0.8mm ( optional )

Extruder

Single ( upgradeable to dual )

Noise Level

<55 dB

Printing Speed

200mm/s Variable as per material profile)

Max Extruder Temperature

305°C

Dimensions

L- 730mm X W- 670mm X H- 900mm

Connectivity

USB, Wi-FI, Ethernet

Accuracy

80-250 Micron

Input Power

220V – 4A – 50Hz

Build Material

ABS+, PLA, Metal fill, Carbon fibre, Polycarbonate, Polyurethane, ABS – PC.

Physical Dimensions

Build Size

400mm*300mm*300mm

Total Machine Weight

113 Kg
